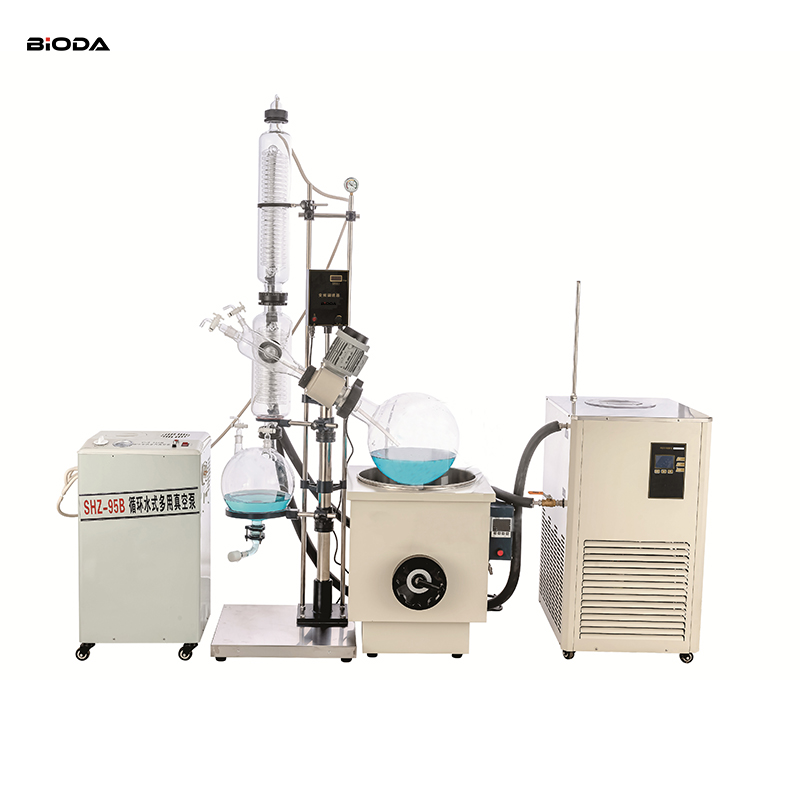

BRE-1002 BRE-2002 BRE-3002 BRE-5003 10L-50L rotary evaporator
BRE-1002 BRE-2002 BRE-3002 BRE-5003 rotary evaporator
Brief introduction:
Rotary evaporator is an evaporation instrument widely used in laboratories. It consists of a motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure conditions. , used in chemistry, chemical industry, biomedicine and other fields.
It is also the main means for manufacturing and analyzing experiments when they do extraction and concentration .
Technical parameters:
Model | BRE-1002 | BRE-2002 | BRE-3002 | BRE-5003 |
Glass material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 490*430*540mm | Spray anti-corrosion 630*534*638mm | Spray anti-corrosion 710*620*700mm | Spray anti-corrosion 710*620*700mm |
Pot bravery material | Stainless steel 350*220mm | Stainless steel 450*250mm | Stainless steel 500*280mm | Stainless steel 550*320mm |
Plate size | 474*474mm | 534*504mm | 804*574mm | 804*574mm |
Evaporator flask | 10L ￠95Flange port | 20L ￠95Flange port | 30L ￠125Flange port | 50L ￠125Flange port |
Collect flask | 5L ￠50Flange port | 10L ￠60Flange port | 20L ￠60Flange port | 20L ￠60Flange port |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotary power | 120W | 120W | 180W 220V/50Hz | 180W 220V/50Hz |
Rotary speed | 0-110rpm | 0-110rpm | 0-110rpm | 0-110rpm |
Heating power | 3KW 220V/50Hz | 5KW 220V/50Hz | 8KW 380V/50Hz | 8KW 380V/50Hz |
Heating temp.range | 0-400℃ | 0-400℃ | 0-400℃ | 0-400℃ |
Temp. accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
Lifting disctance | 180mm | 180mm | 180mm | 180mm |
Dimension(mm*mm*mm) | 970*480*1950mm | 1170*540*2200 | 1520*620*2470 | 1520*620*2470 |
Packing size(mm*mm*mm) | 1340*350*450 1340*590*700 | 1370*680*710 690*690*840 | 1480*380*480 1180*830*710 790*750*850 | 1480*380*480 1180*830*710 790*750*850 |
Packing weight（KG） | (38+68)106 | (86+49)135 | (47+76+56)179 | (47+76+56)179 |
