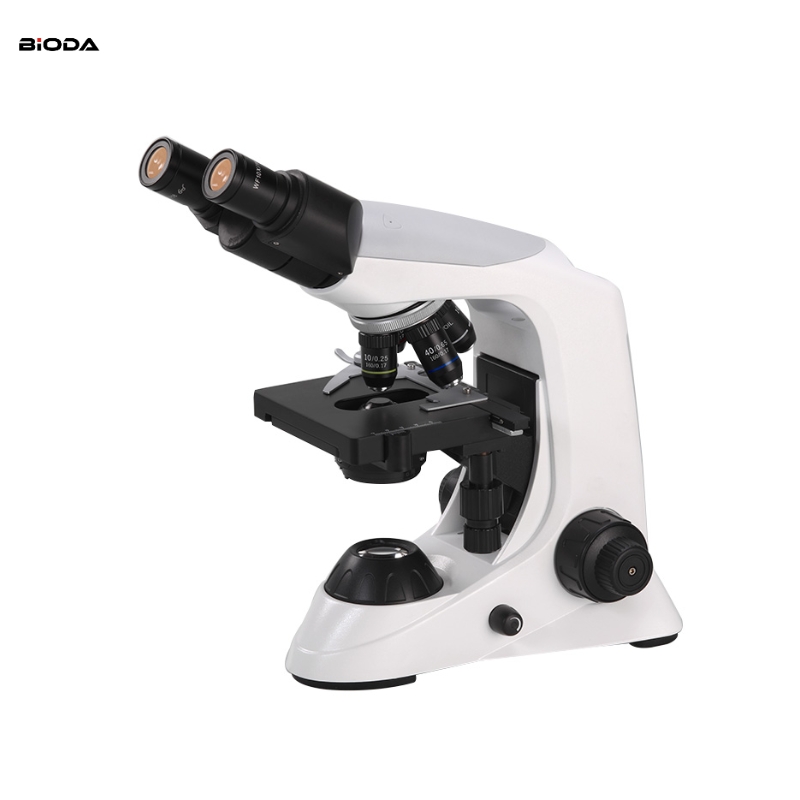

B301 Series Biological Microscope

Eyepiece

WF 10×-18 mm（pointer is optional）

●

●●

●●

WF 16×-13 mm

○

○○

○○

WF 10×-18 mm(non-adjustable,reticule 0.1 mm)

○

○

○

WF 10×-18 mm(adjustable,reticule 0.1 mm)

○

○

○

Achromatic Objective

4X/0.10                 W.D.=18.6mm

●

●

10X/0.25                 W.D.=6.5mm

●

●

40X/0.65 (S)             W.D.=0.47mm

●

●

100X/1.25 (Oil) (S)        W.D.=0.07mm

●

●

20X/0.40                 W-D.=1.75mm

○

○

60X/0.80(S)               W.D.=0.10mm

○

○

Plan Objective

4X/0.10                   W.D.=14.5mm

●

10X/0.25                  W.D.=5.65mm

●

40X/0.65 (S)               W.D.=0.85mm

●

100X/1.25 (Oil) (S)          W.D.=0.07mm

●

Monocular Head

Inclined 30°

●

Butterfly

Seidentopf Binocular Head

Inclined 30°, Swiveling Siedentopf Head，

IPD: 48-75mm

●

●

Butterfly

Seidentopf

Trinocular Head

Inclined 30°, Swiveling Siedentopf Head，

IPD: 48-75mm,Light Distribution: 20:80

○

○

Nosepiece

Quadplex

●

●

●

Focusing Knobs

Coaxial Coarse and Fine Focusing Knobs

Travel Range: 25mm,  Scale: 2µm

●

●

●

Mechanical Stage

Stage Size:125mm×115mm,Travel:35mm×75mm

●

●

●

Condenser

Abbe N.A. 1.25(Iris Diaphragm)

●

●

●

Dark Field Ring

Available For 4×-40× Objective

○

○

○

C-mount

1×

○

○

0.5×（Focus Adjustable）

○

○

Base

3W-LED Illumination Systems

●

●

●

External power adapter and data cable

●

●

●
