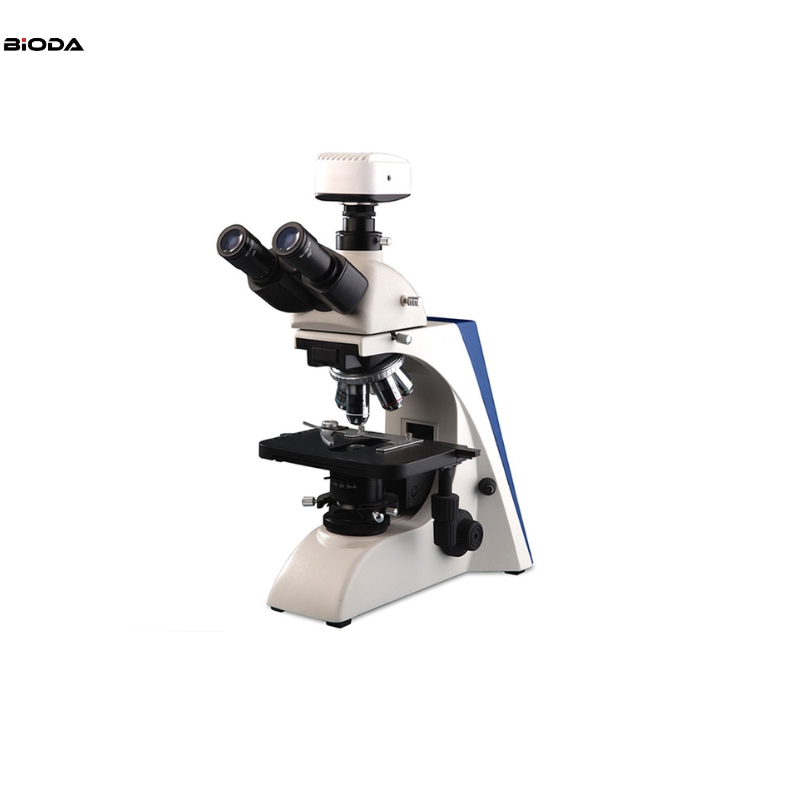

BK5000 Series Biological Microscope
Performance characteristics:
● Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation.
● Dark field condenser（dry）available to 4X-40X Objective.
● Dark field condenser (wet) available to 100X Objective.
● 10X/20X/40X/100X Independent Phase Contrast Unit.
● Infinity Plan Objectives
● BK5000 Fluorescence Microscope ● BK5000 LED Fluorescence Microscope
● Six-holes disk fluorescence unit, More fluorescence filters can be supplied
● Polarizer, analyzer for simple polarizing unit.
● BK5000 Biological Microscope Size(mm)
● BK5000 Fluorescence Microscope Size(mm)
BK5000 Series Biological Microscope General Layout Diagram
BK5000 Series Biological Microscope Outfits
Items | Specification | Outfits | |
Eyepiece | WF10×／20mm (23.2mm) | ●● | |
Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● |
PLAN 10×／0.25 | W.D.=4.64mm | ● | |
PLAN 20×／0.40(S) | W.D.=2.41mm | ● | |
PLAN 40×／0.66(S) | W.D.=0.65mm | ● | |
PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | |
PLAN 2.5×／0.07 | W.D.=8.47mm | ○ | |
PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | |
PLAN 100×／1.15(S, W) | W.D.=0.19mm | ○ | |
Infinity Plan Semi Apochromatic Objective | UPlanFLN 10X/0.30 | W.D.=7.68mm | ○ |
UPlanFLN 20X/0.50 | W.D.=1.96mm | ○ | |
UPlanFLN 40X/0.75 | W.D.=0.78mm | ○ | |
UPlanFLN 100X /1.30 (Oil) | W.D.=0.15mm | ○ | |
Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm | ● | |
Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm, Light Distribution: 100: 0 / 80:20 | ○ | |
Nosepiece | Quintuple | ● | |
Mechanical Stage | Stage Size: 175mm×145mm,Travel: 78mm×55mm | ● | |
Integrated stage Stage size: 182 mm×140mm,Travel range: 77mm×52mm | ○ | ||
Condenser | Abbe N.A. 1.25 with iris diaphragm. | ● | |
Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm. | ○ | ||
Koehler Illumination Wide voltage input: 100V～240V Field diaphragm , center adjustable | 12V/20W Halogen Lamp | ○ | |
12V/30W Halogen Lamp | ○ | ||
3W-LED Illumination | ● | ||
Filter | Blue | ● | |
Green /Amber /Grey | ○ | ||
C-mount | 1×/0.35×/0.5×/0.75× C-mount (focus adjustable) | ○ | |
Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | |
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | ||
Phase Contrast Unit | Quintuple hole turret 10× /20× /40× /100× phase contrast objective | ○ | |
Independent slot 10× /20× /40× /100× phase contrast objective | ○ | ||
Dark Field Unit | Dark field condenser (dry)，apply to 4×- 40× objective | ○ | |
Dark field condenser (wet)，apply to 100× objective | ○ | ||
Polarizing Attachment | Analyzer / Polarizer | ○ | |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 542mm×265mm×355mm Gross Weight: 12 kgs Net Weight: 10kgs
