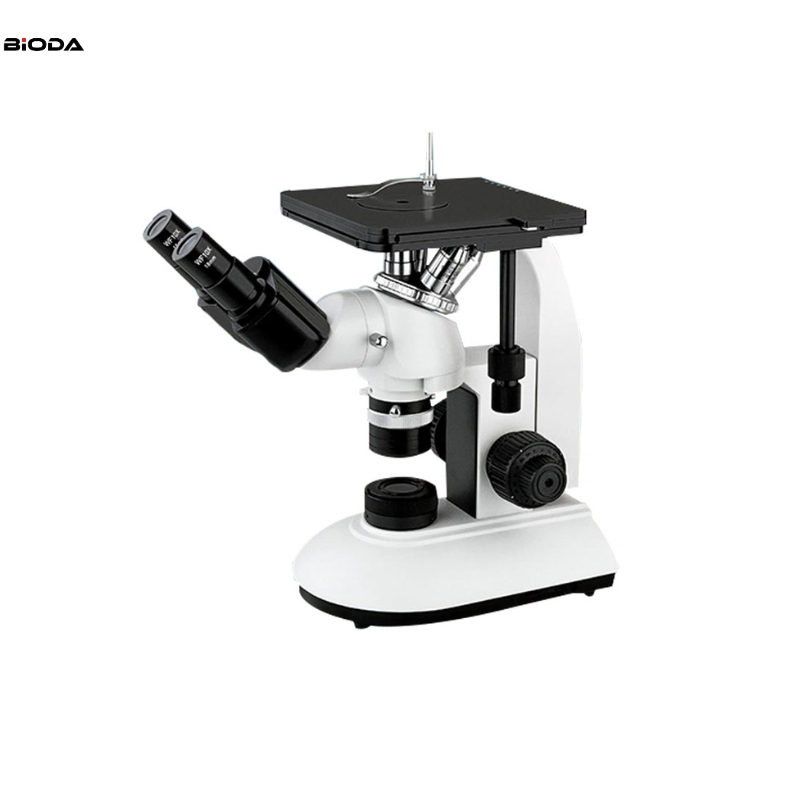

MDJ Inverted Metallurgical Microscope

Eyepieces

WF 10×-18 mm

●

●●

WF 10×-18 mm(adjustable,Reticule 0.1 mm)

○

○

Metallurgical LWD Infinity

Plan Objectives

LPL  5×／0.13         W.D=16.04mm

●

●

LPL 10×／0.25         W.D=18.48mm

●

●

LPL 20×／0.40         W.D=8.35mm

○

○

LPL 50×／0.70         W.D=1.95mm

●

●

LPL 80×／0.80         W.D.= 0.85mm

○

○

LWPlanFL 100×／0.85(Dry)    W.D=3.0mm

○

○

Butterfly Binocular Head

Inclined 45º

●

Monocular Head

Inclined 45º

●

Butterfly Trinocular Head

Inclined 45º, Built in 0.5X C-mount

○

Nosepiece

Quadplex

●

●

Mechanical Stage

Size: 180×180mm，Travel Range: 30×30mm，

Round slide size：φ110mm

●

●

3W-LED  llumination

Input voltage：100V～240V

●

●

12V/20W  Ilumination

○

○

Filters

Blue, Green, Grey

●

●

Micrometer

Division 0.01mm

○

○
