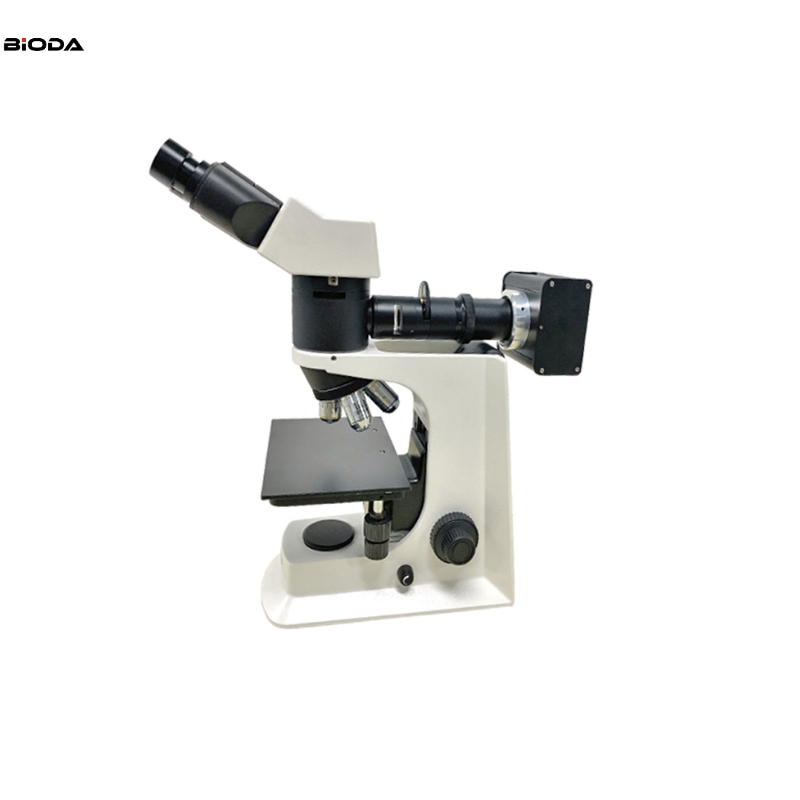

MIT200 Metallurgical Microscope
 |  |  |
L.W.D Metallurgical Objective | 200mmX140mm Stage |
● New designed and humanized butterfly binocular Head-Tubes which can be 360° rotated to raise observing Height position than normal tubes to be more convenient for users with different height. |
● 5V-12V low voltage input to ensure safe use ● Power bank can be used for power supply, more convenient for field inspection and power-short condition |
MIT200 Metallurgical Microscope Size（mm）
MIT200 Metallurgical Microscope Outfits
Items | Specification | MIT200 | |
Eyepiece | WF10X/20mm (High eyepoint) | ● | |
WF10X/20mm(H, adjustable Focus,Reticule 0.1mm) | ● | ||
Long Working Distance Infinity Plan Objective (no cover glass) | LPL 5×/0.13 | W.D=16.04mm | ● |
LPL 10×/0.25 | W.D=18.48mm | ● | |
LPL 20×/0.4 | W.D=8.35mm | ○ | |
LPL 50×/0.7 | W.D=1.95mm | ● | |
LPL 80×/0.8 | W.D=0.85mm | ○ | |
LMPlan FL 100×／0.85(Dry) | W.D=3.00m | ○ | |
Swiveling Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm | ● | |
Swiveling Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm Light Distribution 80:20 | ○ | |
Nosepiece | Quadplex | ● | |
Mechanical Stage | Stage Size: 200×140mm, Travel : 76mm×52mm Coaxial Coarse and Fine Focusing Knobs | ● | |
Reflection Illumination | 5WLED Warm lamp (Input voltage：100V～240V) | ● | |
Filter | Five-hole filter unit(blue, green, amber, grey, empty) | ● | |
Polarizing Attachment | Analyzer/ Polarizer | ○ | |
C-mount | 1× | ○ | |
0.5X （Focus Adjustable） | ○ | ||
Image System | USB2.0 3MP digital camera for trinocular head(measurement software) | ○ | |
USB2.0 5MP digital camera for trinocular head(measurement software) | ○ | ||
USB3.0 12MP digital camera for trinocular head(measurement software) | ○ | ||
9.7” LCD touch screen tablet camera for trinocular head (measurement software) | ○ | ||
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
MIT200 Packing Size: 570mm×275mm×450mm Gross Weight: 10.5 kgs Net Weight: 8 kgs
