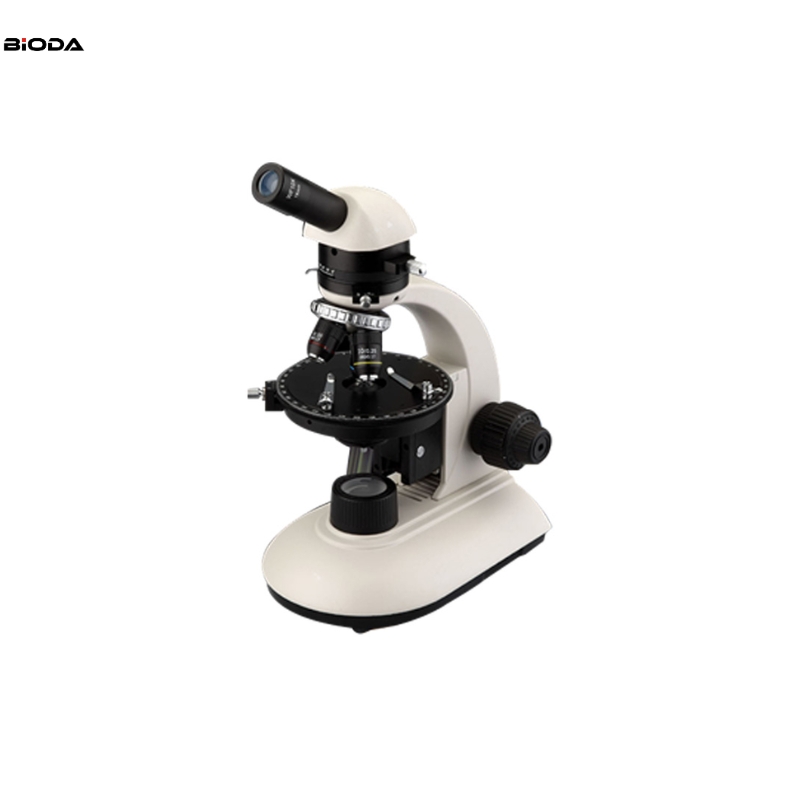

B-POL Polarizing Microscope
B-POL Polarizing Microscope Outfits
Items | Specification | B-POL |
Eyepiece | WF 10×-18mm (Cross, Reticule 0.1mm) | ● |
WF 16×-13mm | ○ | |
Non-stress Achromatic Objective | 4× | ● |
10× | ● | |
40× (S) | ● | |
20× | ○ | |
60× (S) | ○ | |
Mono Head | Inclined 30°, Rotatable 360° | ● |
Nosepiece | Quadplex | ● |
Analyzer Unit | 0-90°，It can be moved out of the optical path for single polarizing observe. | ● |
Bertrand Lens | It can be moved out of the optical path. | ● |
λ Slip | First Class Red | ● |
1/4λ Slip | ● | |
Quartz Wedge | (Ⅰ-Ⅳ Class) | ○ |
Revolving Round Stage | Rotatable 360°, Division 1°, Vernier division 6’，can be locked. Diameter Φ142mm | ● |
Polarizing Attached Mechanical Stage | ○ | |
Condenser | Abbe N.A. 1.25 | ● |
Polarizing Unit | It can be moved out of the optical path. | ● |
Illumination | 12V/20W Halogen Lamp | ● |
3W LED Lamp | ○ | |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
● B-POL Polarizing Microscope Size（mm）
