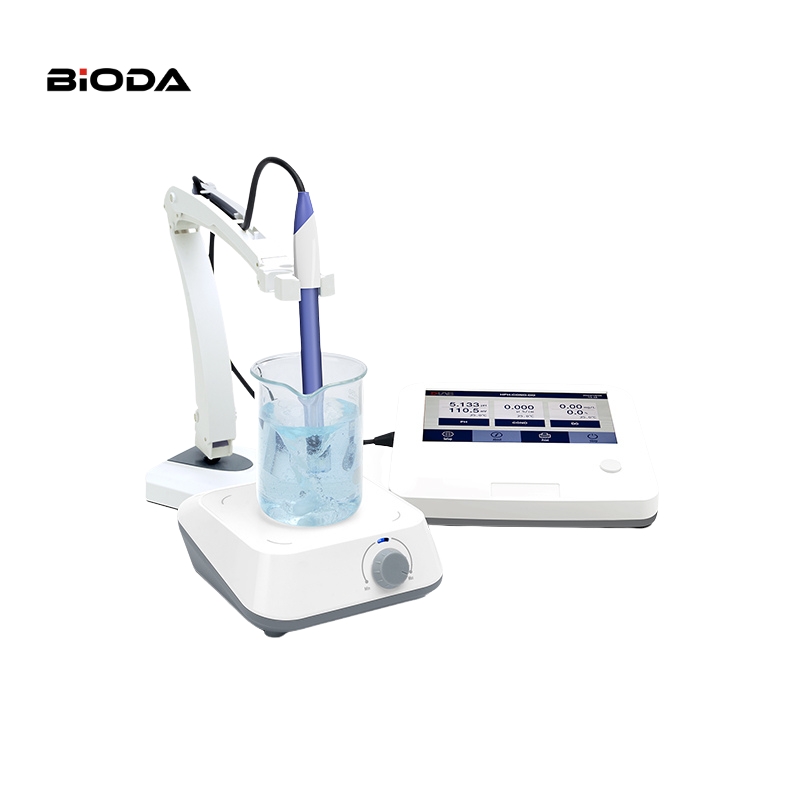

Benchtop 7 in 1 Ph ORP Conductivity Tds Salinity DO Temp Meter Water Multiparameter Analyzer
Product feature
BENCHTOP-Classical series（Multi parameter）
High-res 7″ display screen with white backlight, easy to read
Automatic calibration, ATC measurement, parameter setup
Automatic reading stable indication, calibration indication
Data storage: 450 readings
Data export: Flash disk/ Wireless printer (the printer is optional)
Equipped with a flexible probe holder and pH buffer solutions for convenient use
Protection class: IP54
Equipped with various electrode holders and standard solutions, suitable for measuring different parameters.
PRODUCT PARAMETERS
Parameter | pH/mV.℃ | mV(ORP).℃ | Cond/TDS/Sal./Res.℃ | DO.℃ |
pH Measurement range | (-2.00~20.00) pH |
pH Resolution | 0.1/0.01 |
pH Accuracy | ±0.01pH±1digit |
pH Calibration points | 1,2,-3pts automatic |
pH ATC range | (0.0~100.0) ℃/(32.0~212.0)°F |
ORP Measurement range | (-1999.9~+1999.9) mV |
ORP Resolution | 0.1/1 |
ORP Accuracy | ±0.1%F.S±1digit |
Conductivity Measurement range | 0-200.0mS/cm, Auto-ranging: 0-19.99μS/cm; 20.0-199.9μS/cm; 200-1999μS/cm; 2.00-19.99mS/cm; 20.00-199.9mS/cm; TDS: 0-100.0g/L; Resistivity: 5.00Ω·cm-100.0MΩ·cm; Salinity: 0-100ppt. |
Conductivity Calibration points | one point |
Conductivity Resolution | 0.001 |
Conductivity ATC range | (0.0~50.0) ℃/(32.0~122.0)°F |
Conductivity Accuracy | ±1.0% F.S±1digit |
DO Measurement range | (0.00~20.00)mg/L |
DO Accuracy | ±0.30mg/L |
DO saturation | (0.0~200.0)% |
DO Automatic barometri pressure compensation | (0~200.0)kPa |
DO Automatic temperature compensation | (0.0~50.0) ℃/(32.0~122.0)°F |
DO Manual salinity compensation | 0~45ppt |
Temperature Measurement range | (0.0~100.0) ℃/(32.0~212.0)°F |
Temperature Accuracy | ±0.2℃ |
Data export | Flash disk/Printer |
Power supply | DC12V |
Test kit | Meter;Plastic ATC pH probe D201T;Plastic ATC Cond probe DCON201T,K=1.0;Polarographic DO probe DDO01-2M,cable length:2m;pH buffer solution:pH4.00/7.00/10.01, 50mL,one for each;Standard Cond solution:84μs/1413μs/12.88mS/cm,50mL,one for each;Membrane refill solution DDOS-01,30mL,1btl;Membrane sensor caps DDOSC:3pcs/group,1pkg;Power adaptor:1pc;Flexible probe holder DF01:1pc |
