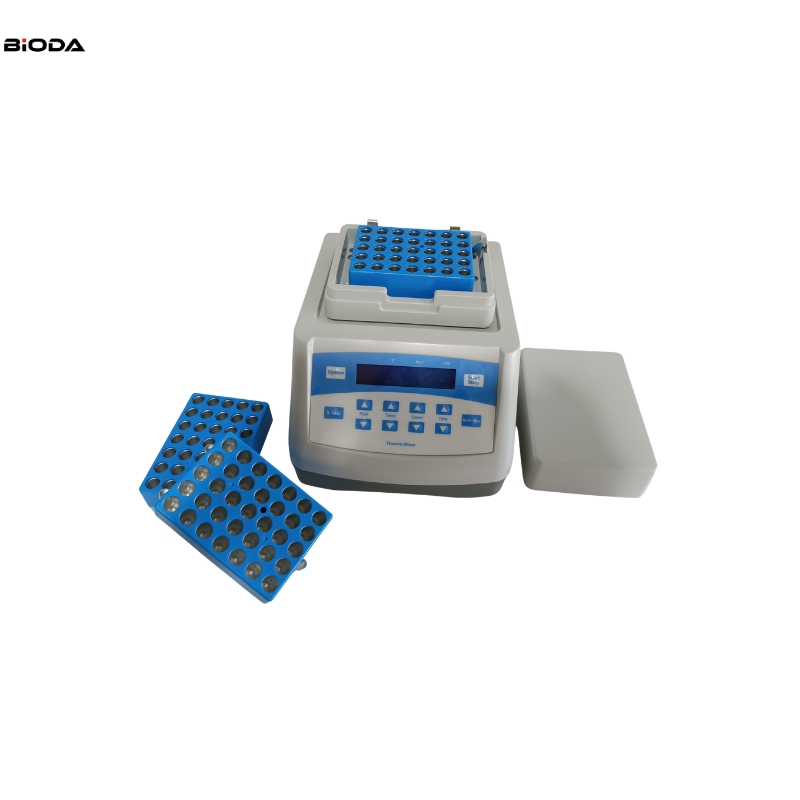

TS100 Thermo Shaker

TS100 Thermo Shaker

Thermo Shaker—TS100

Description:

TS100 thermo shaker is a temperature controlled shaker, which is useful for a variety of molecular biology applications. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long time, safety and sample integrity.



Features:

u LCD display. It is easy to setup and use.

u Reliable design with inner extra temperature protection.

u Each device is equipped with lifter that is easy to replace different blocks.

u Digital accuracy and convenience.

u Precision wells for uniform thermal transfer.

u Assorted blocks for a wide variety of tube sizes.

u Brushless DC Motor: noiseless long service life maintenance-free.

u Conform to CE safety standard.

u Accurately control and display time, temperature and speed.

Applications:

u Storing enzymes or DNA libraries at your work station.

u Transporting samples from the field at exactly the right temperature.

u Heating samples in the field.

u Enzyme reactions and deactivations.

u PCR sample preparation.



Parameters:

Model

TS100

Temp setting range

0℃~100℃

Temp control range

RT.+5℃~100℃

Time range

1min ~ 99h59min/∞

Temp accuracy

≤±0.3℃*

Display accuracy

0.1℃

Temp uniformity

≤±0.3℃*

Speed range

200~1800rpm

Orbit

3mm

Heating time

≤12min(from 25℃ to 100℃)*

Multi point running

Yes(Max 5points)

Multi cycle

Yes(Max 99times)

Auto heating

Yes

Auto running

Yes

Auto resume to run

Yes

Power supply

150W

Voltage

AC220V or AC110V/50-60Hz

Fuse

250V 3A  Ф5×20

Dimension(mm)

260x195x150

Weight(kg)

7.0


Optional blocks

Type

Capacity

Temp range

Max Speed

MD30

96x0.2ml

0℃~100℃

1800rpm

MD31

54x0.5ml

0℃~100℃

1800rpm

MD32

35x1.5ml

0℃~100℃

1800rpm

MD33

35x2.0ml

0℃~100℃

1800rpm

MD34

20x1.5ml+15x0.5ml

0℃~100℃

1800rpm

MD35

96x0.2ml

0℃~100℃

1800rpm

MD36

24x5ml

0℃~100℃

1000rpm

MD37

15x10ml

0℃~100℃

1000rpm

MD38

12x15ml

0℃~100℃

800rpm

MD39

6x50ml(round-shape bottom)

0℃~100℃

800rpm

MD39-S

6x50ml(cone-shape bottom)

0℃~100℃

800rpm
