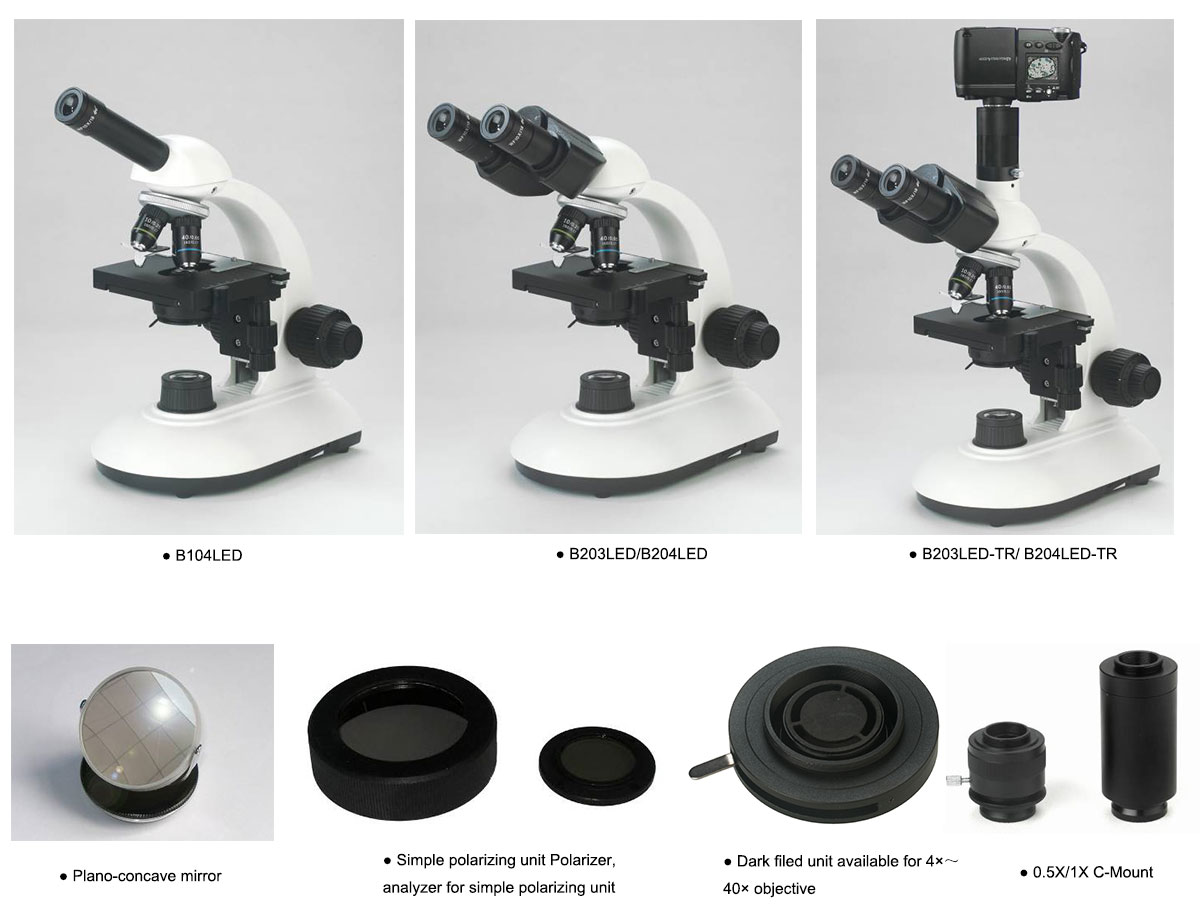

Clinical Use Laboratory School Teaching Bright Field Observation Binocular Biological Microscope

Eyepiece

WF 10×-18 mm(Pointer is optional)

●

●●

●●

WF 10×-18 mm(Pointer)

○

○○

○○

WF 10×-18 mm(adjustable, 0.1 mm)

○

○○

○○

WF 16×-13 mm

○

○○

○○

WF15X/-13 mm

○

○○

○○

Achromatic

Objective

4X/0.10  W.D=18.6mm

●

●

10X/0.25  W.D=6.5mm

●

●

40 X/0.65 (S)  W.D=0.47mm

●

●

100 X/1.25(S,Oil)  W.D=0.07mm

●

●

20 X/0.40  W.D=1.75mm

○

○

60 X/0.80(S)  W.D=0.10mm

○

○

Plan Objective

4X/0.10   W.D.=14.5mm

●

10X/0.25   W.D.=5.65mm

●

40X/0.65(S)   W.D.=0.85mm

●

100 X/1.25(S,Oil)   W.D.=0.07mm

●

20X/0.40   W.D.=5.65mm

○

Monocular Head

Inclined 30°, Rotatable 360°

●

Butterfly Seidentopf Binocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 48-75mm

●

●

Butterfly Seidentopf

Trinocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 48-75mm,

Light Distribution 20:80

○

○

○

Nosepiece

Quadplex

●

●

●

Focusing Knobs

Coaxial Coarse and Fine Focusing Knobs

Travel Range: 22mm, Scale: 2µm

●

●

●

Mechanical Stage

Stage Size:125mm×115mm,

Travel: 35mm×75mm

●

●

●

Condenser

Abbe N.A. 1.25(Iris Diaphragm)

●

●

●

Dark Field Ring

Available For 4×-40× Objective

○

○

○

Polarizing Attachment

Analyzer / Polarizer

○

○

○

Mirror

Plano-concave mirror

○

○

○

C-mount

1×/ 0.5×（Focus Adjustable）

Base

3WLED Illumination Systems(DC input)

●

●

●

External power adapter and data cable

●

●

●
