Scientific Research Digital Cell Tissue Medical Diagnostics Culture IVF Biological Inveted Microscope

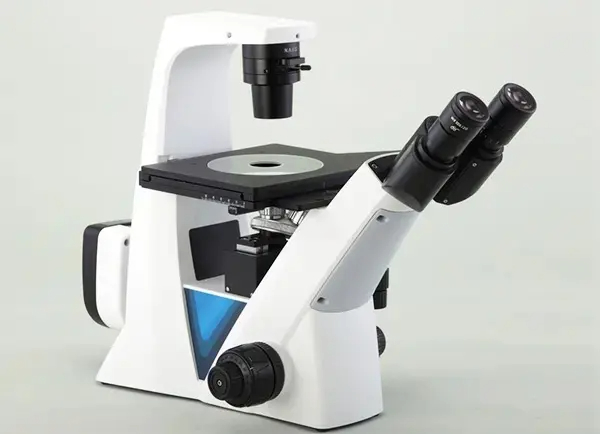

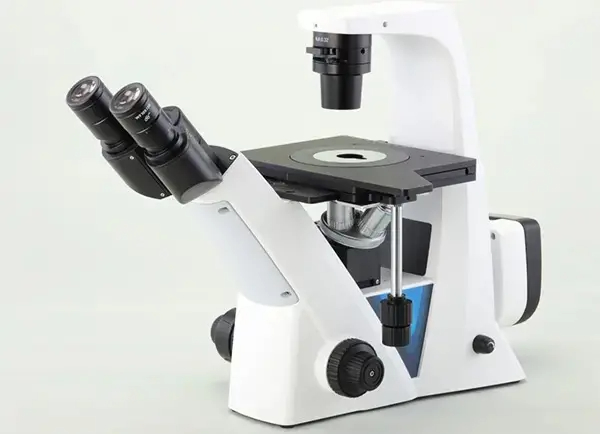

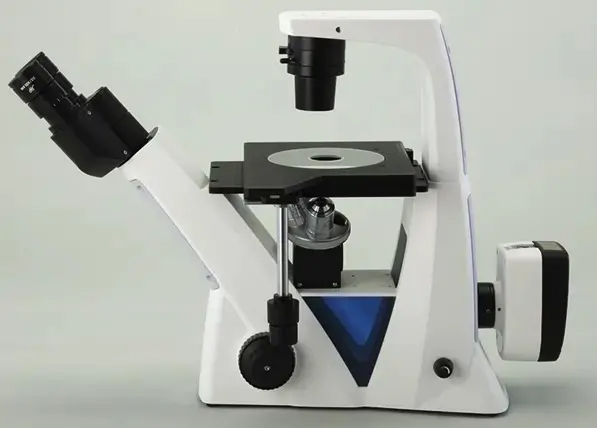

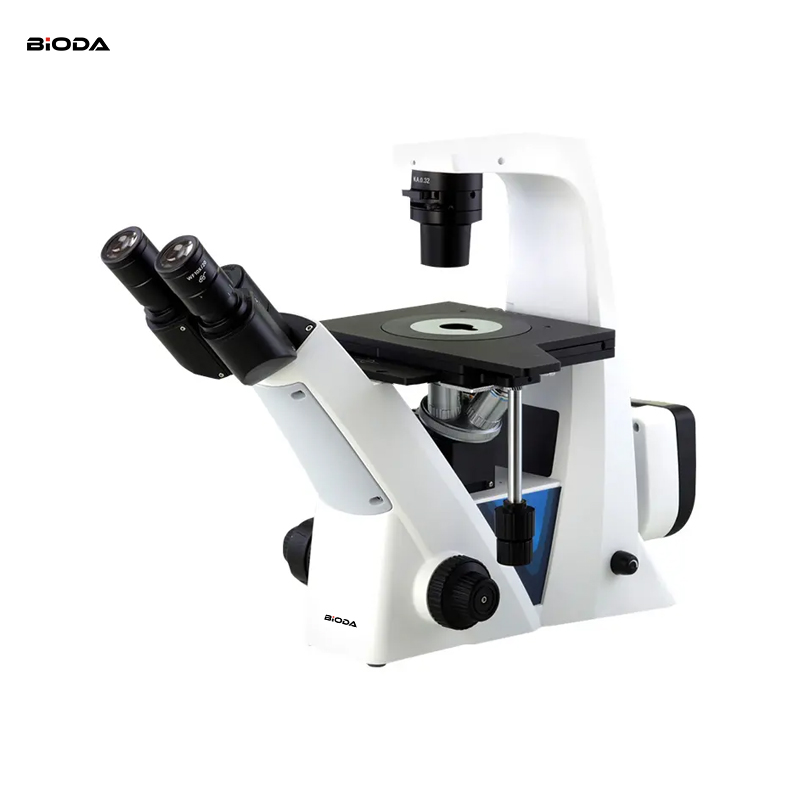

BDS300 Series Inveted Biological Microscope
Brand-new BDS300 inverted biological microscope for life science research
Infinity optical system, perfect for cell tissue observation and cultivation
New Designed Objective for Both Bright Field & Phase Contrast Observation Not Necessary to Change Objective
BDS300 BDS300

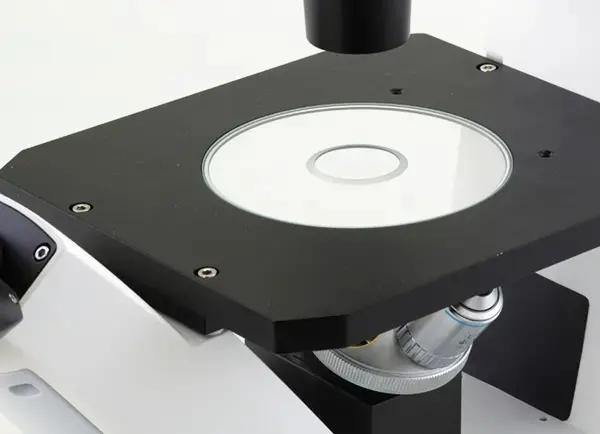

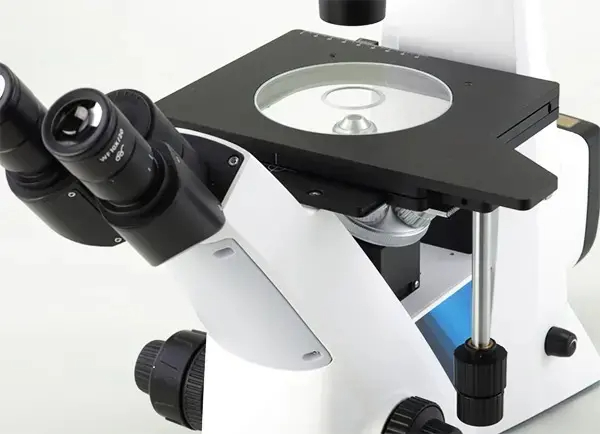

180×155mm Mechanical Stage 180×203mm Fixed Stage
Two types stage, applicable to samples of different sizes

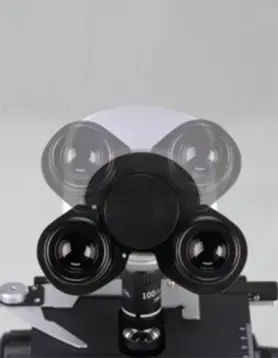

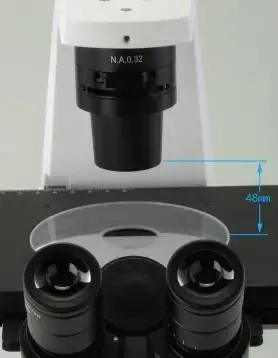

Butterfly binocular head, drawtube 360°rotatable, more convenient Long Working Distance Condenser N.A.0.32, W.D.48mm
for users with different height.
BDS300 with digital camera/HDMI camera can connect with PC or HDMI monitor
Digital camera is located at the back of the microscope, which does not interfere with the user's operation

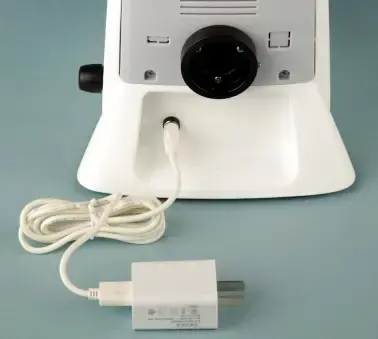

5-12V low voltage input, to ensure safe use

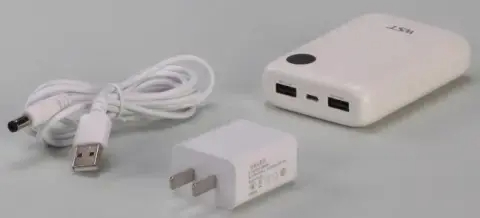

USB C cable and adapter
Built-in LED illumination system which can be powered with power Bank, Laptop and Vehicle power supply
Being used anywhere and any Condition
Objective Parameter List (Cover-glass thickness1.1mm)
Objectives | N.A. | Working distance(mm) | |
LWD Infinity Plan Objectives | L Plan FL 4X | 0.11 | 12.1 |
L Plan FL 10X | 0.25 | 10.3 | |
L Plan FL 20X | 0.45 | 5.8 | |
L Plan FL 40X | 0.65 | 5.1 | |
LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 10X (Both for Bright Field & Phase Contrast) | 0.25 | 10.3 |
L Plan FL PHP 20X (Both for Bright Field & Phase Contrast) | 0.45 | 5.8 | |
L Plan FL PHP 40X (Both for Bright Field & Phase Contrast) | 0.65 | 5.1 |
BDS300 Inverted Biological Microscope Outfits
Item | Specification | Outfits | |
Eyepiece | WF10X/20mm | ●● | |
LWD Infinity Plan Objectives | L Plan FL 4X／0.11 | W.D.=12.1mm | ○ |
L Plan FL 10X／0.25 | W.D.=10.3mm | ● | |
L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | |
L Plan FL 40X／0.65 | W.D.=5.1mm | ● | |
LWD Infinity Plan Phase Contrast Objectives
| L Plan FL PHP 10X／0.25 (Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ○ |
L Plan FL PHP 20X／0.45 (Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | |
L Plan FL PHP 40X／0.65 (Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ○ | |
Annular Spot | 10X | ○ | |
20X/ 40X | ● | ||
Butterfly Siedentopf Head | Eyepiece tube 360°rotated, Inclined 45°, IPD: 48-75mm, Light distribution: 80:20（80% for eyepiece,and 20% for camera tube） | ● | |
Nosepiece | Quadplex | ● | |
Mechanical Stage | Stage size: 180 mm×155mm, Moving range:75×40mm , Scale : 0.1mm, Round slide size：φ110mm， Glass Holder（external diameter φ110mm, inside diameter φ30mm） | ● | |
Fixed Stage | Stage size: 180 mm×203mm, Round slide size：φ110mm， Glass Holder（external diameter φ110mm, inside diameter φ30mm） | ○ | |
Drop-shaped Metal Holder( external diameter φ110mm, inside diameter φ25mm） | ○ | ||
Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm. | ● | |
Condenser | Long working distance, N.A.0.32,Working distance: 48mm | ● | |
Illumination | 5WLED Warm lamp (Input voltage：100V～240V) | ● | |
Filter | Green | ● | |
Blue /Yellow /Grey | ○ | ||
C-mount | 0.65×(built-in) | ● | |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 515mm× 480mm× 315mm Gross Weight: 9kgs Net Weight: 7 kgs
