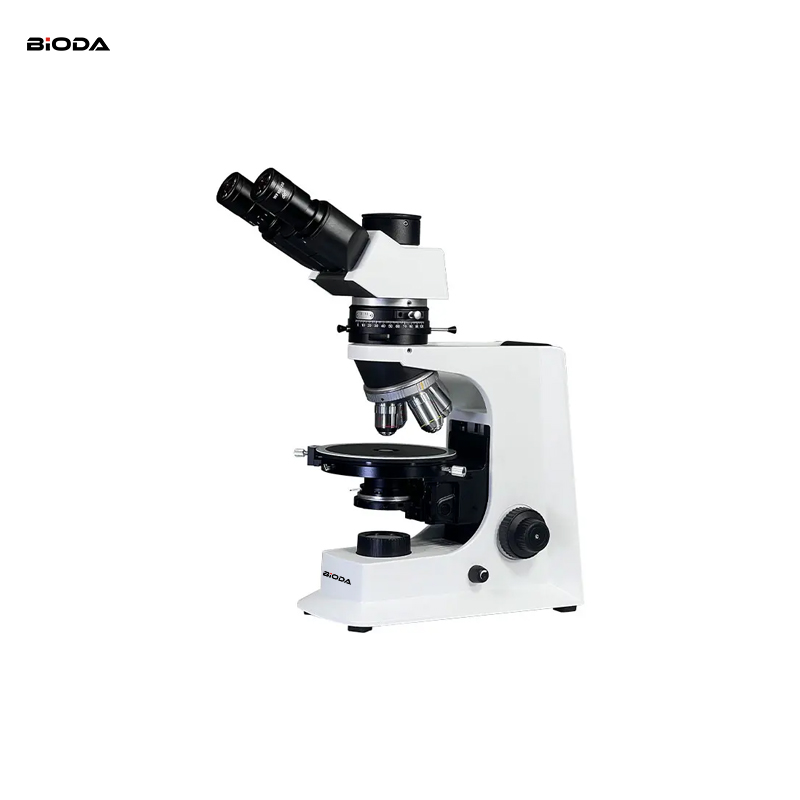

High Performance Infinity Achromatic Correction Optical System Polarizing Microscope for Geology Mineralogy

Eyepiece

WF 10×-20mm

●

WF 10×-20mm (Reticule 0.1mm)

●

Non-stress
Infinity
Plan Objective

4×

●

10×

●

20× (S)

●

40× (S)

●

60× (S)

○

100× (S，Oil)

○

Butterfly Seidentopf Binocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  48-75mm.

●

Butterfly Seidentopf Trinocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  48-75mm.
Light Distribution 20:80

○

Nosepiece

Quadplex, Center adjustable

●

Analyzer Unit

0-90°，It can be moved out of the optical path for single polarizing observe.

●

Bertrand Lens

It can be moved out of the optical path.

●

λ Slip

First Class Red

●

1/4λSlip

●

Quartz Wedge

(Ⅰ-Ⅳ Class)

●

Revolving Round Stage

Rotatable 360°, Division 1°, Vernier division 6’，can be locked.

Diameter Φ142mm

●

Polarizing Attached Mechanical Stage

○

Condenser

Abbe N.A. 1.25      Non-stress

●

Polarizing Unit

Under the Condenser

●

Illumination

12V/30W Halogen Lamp

○

5W-LED Lamp

●

Filter Φ45

Blue / Amber / Green / Neutral

○

C-mount

1×/0.75×/0.5×（Focus adjustable）

○
