Advanced Chemical Research Rotovap Speed Heating Lcd Display Automatic Lift 20L Rotary Evaporator
Product feature

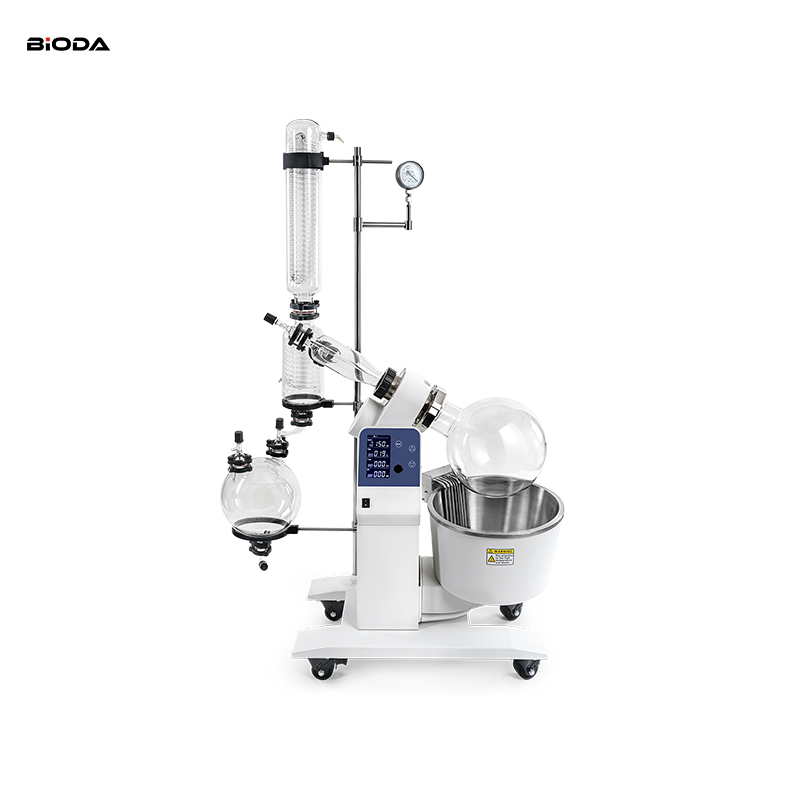

RE200- Pro 20L Industrial Digital Rotary Evaporator
Large LCD digital display with heating temperature, rotation speed, clockwise & anticlockwise and time information
One-click automatic motor lifting (stroke 180mm), smooth and silent
Water/oil heating bath with wide temperature range from RT to 180 °C
Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process
Two-section vertical triple coil condensing tube with large area and strong evaporation capacity ensuring high-efficiency sample recovery
The connector device allows for easy and quick installation of the evaporating flask.
PTFE double sealing ring with excellent sealing performance
Switch valve for continuous collection without compromising the system vacuum and solvent distillation
PRODUCT PARAMETERS
Specifications | RE200-Pro | |
Performance | Temperature range | Room temp. ~180℃ |
Control Accuracy | Water: ±1℃Oil: ±3℃ | |
Rotation Speed | 10~150rpm | |
Evaporation capacity | Max.4.0L/h (water vapor volume) | |
Ultimate vacuum | Less 2.6hpa | |
function | Temperature control method | Micro processer PID control |
Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) | |
Stroke Displacement | Automatic 180mm | |
Safety features | Motor over-current protection, Residual Current Device, | |
constitute | Sample flask | Round flask 20L |
Receiving flask | Round flask 10L with drain valve | |
Condenser | Two-section vertical triple serpentine condenser, | |
Specification | Heating bath size | φ450×240mm |
Takeover caliber | Cooling/suction nozzle outer diameter 16mm, | |
Dimension[D×W×H] | 1160mm×600mm×1860mm | |
Power supply | 220V/4600W/50/60Hz | |
