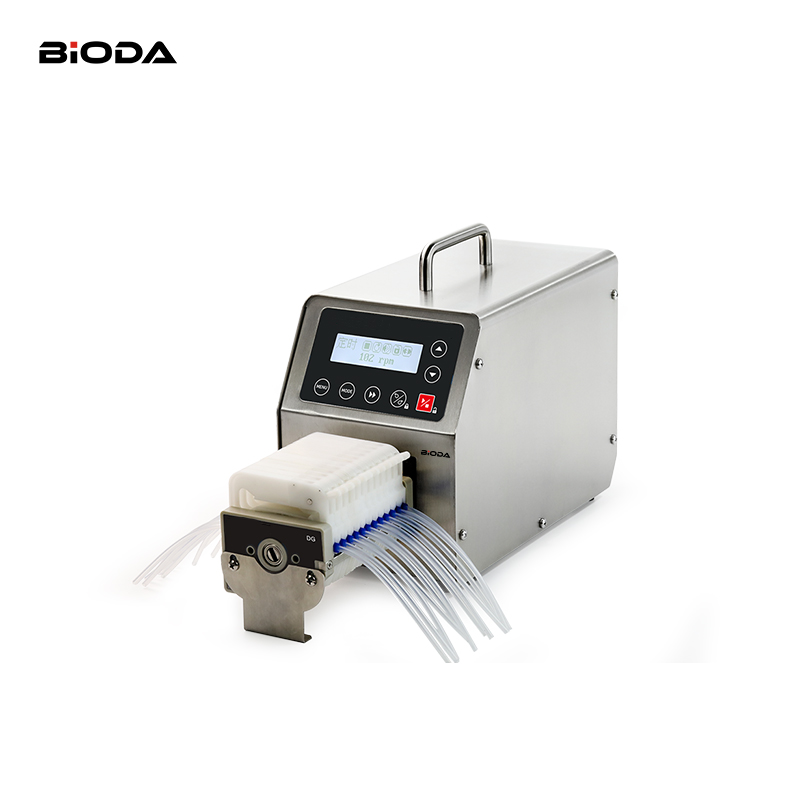

BT100S-1 Basic Variable Speed Peristaltic Pump
Features
• 128 * 32 L CD screen, Chinese and English switching, simple parameter setting, intuitive status display.
• Delay start and delay stop function.
• Start/stop, reversible direction, full speed, adjust speed, stat e memory (power-down-memory).
• External analog speed regulation, external control signal control start and st op, positive and negative, physical isolation of external control signal.
• External control signal supports 5-24v wide voltage input.
• External speed control signal type (voltage or current) can be s witched through the control panel.
• RS485 communication interface, MODBUS protocol is available, support communication parameter setting easy to connect other equipments.
• Circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .
• Stainless steel housing is easy to clean, effectively preventing corrosion from various acids, bases and organic solvents.
Technical Parameter
Flow range: 0.00011～750mL/min
Speed range: 0.1-150rpm
Speed resolution: 0.1rpm(speed≤100rpm),1rpm(speed＞100rpm)
Speed accuracy: <±0.2%
Working time: 0.1～999S/Min/H/D
Dispensing interval time: 0.1～999S/Min/H/D
Dispensing time: 1～999, 0 Infinite cycle
External control signal input: (1)Start/stop: passive contact, external control input level (5-24V); (2)Reversal/Inversion: Passive contacts, external control input level (5-24V); (3)Speed regulation: analog 0-5V, 0-10V, 4-20mA can be set
External control signal output:(1)Start/Stop: Level Signal (following input voltage); (2)Reversing/inverting a level signal (following the input voltage)
Communication interface: RS485 communication, support MODBUS protocol,DB15 external control interface
Power supply: AC100～240V ，50Hz/60Hz
Power consumption: <65W
Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
IP grade: IP31
Dimension (L×W×H): 315×150×237 mm
Weight: 5.3 kg
BT100S-1 Applicable Pump Heads and Tubings, Flow Parameters
| Drive Type | Pump Head | Channel | Tube | Single Channel Flow Rate (mL/min) |
| BT100S-1 | DG/DS (6 rollers) | 8,12,16,24 | Wall 0.8～1mm,ID≤3.17mm | 0.00016～49 |
| DG/DS (10 rollers) | 8,12,16,24 | Wall 0.8～1mm,ID≤3.17mm | 0.00011～32 | |
| DT10-88 | 8 | 13#14#，Wall0.8～1mm，ID≤3.17mm | 0.00023～64 | |
| YZ15/YZ15T | 1,2,4 | 13#14#19#16#25#17#18# | 0.005～641 | |
| YT25 | 1,2,4 | 114#116#15#24#35#36# | 0.024～750 | |
| DT15-44 | 4 | 19#16#25#17# | 0.067～560 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension(mm)
Application Fields:
Modern Laboratories, Industrial Production, Agriculture, Medical Equipment, and other sectors.
Typical Applications:
Adding corrosive liquids in mining, Coating, Electrolyte experiments.
