Laboratory 1500rpm Adjustable Speed 550℃ Heating Hot Plate 10l Glass Ceramic Magnetic Stirrer
Product feature

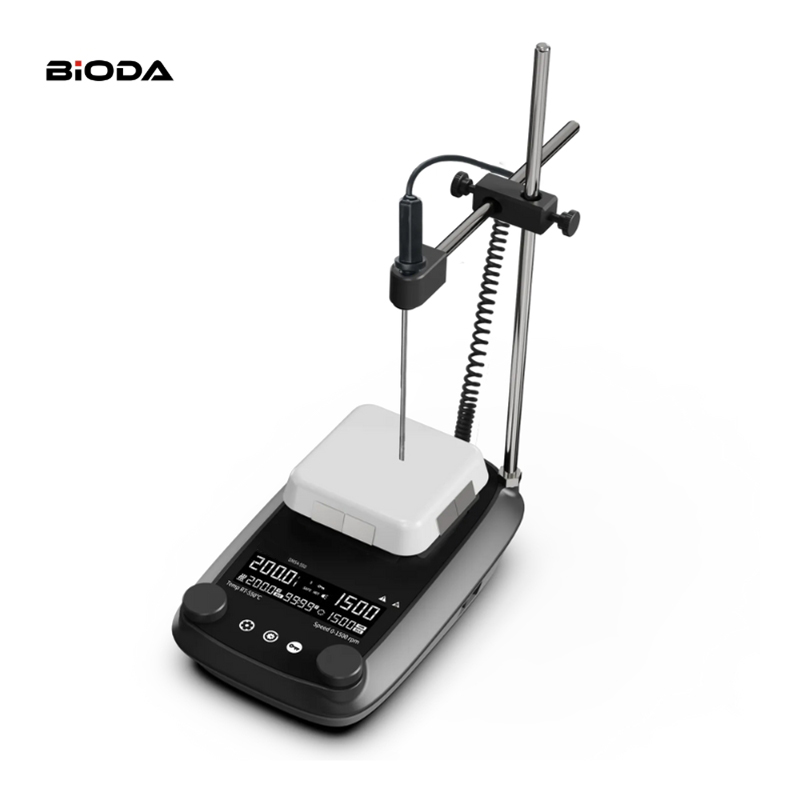

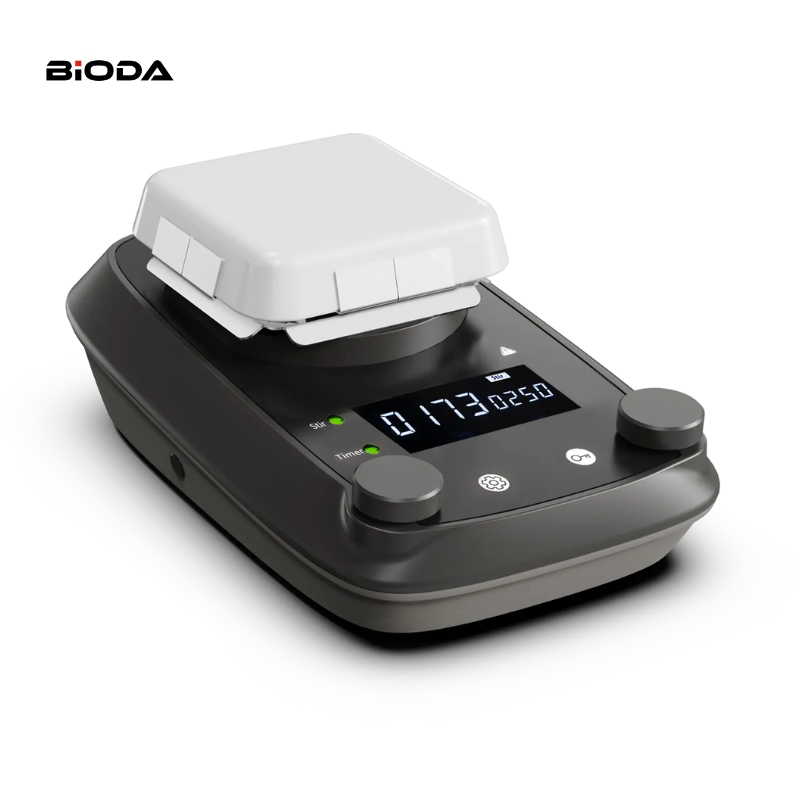

DMS4-550 LCD Glass Ceramic Heating Magnetic Stirrer with Timer
The ceramic-coated plate offers excellent corrosion resistance, capable of withstanding strong acids, strong alkalis, and high temperatures. It is easy to clean spilled solvents, oils, or other contaminants.
The corrosion-resistant full metal housing provides good heat dissipation and reliable fire protection.
The efficient drainage platform and raised waterproof edge prevent liquids from entering the machine and corroding internal electronic components.
Selected high-temperature resistant strong magnets provide powerful stirring force, suitable for mixing viscous liquids.
The safety lock prevents accidental changes to the operating status.
Buzzer: When a fault occurs or the timer countdown ends, the buzzer emits a "beep beep beep" alert sound.
Residual heat warning function: When the plate temperature exceeds 50°C, heating is turned off and the screen displays a flashing “HOT” warning. Even after power-off, the display continues to flash “HOT” to indicate high temperature.
Dual independent safety circuits continuously monitor the device. In the event of overheating or sensor failure, the machine shows an error and stops heating. If a short circuit occurs, the power is automatically cut off to ensure operator safety.
The brushless DC motor is spark-free, long-lasting, low-noise, maintenance-free, and runs smoothly.
The LCD displays both set and real-time values for speed, time, and temperature, providing clear and intuitive readouts.
Timer function: Settable from 1 minute to 99 hours 59 minutes. When the countdown ends, heating stops but stirring continues, preventing thermal damage to samples.
Remote control function is available, allowing connection to a computer.
Safety temperature can be preset.
PRODUCT PARAMETERS
Cat.No.
8021492211
Work plate Dimension
100x100mm（4inch）
Work plate material
Glass ceramic
Max. stirring quantity [H2O]
10L
Speed range
50~1500rpm，increment 1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-550℃，increment1℃
Temperature control accuracy
±1℃(<100℃) | ±1%(>100℃)
Temperature display accuracy
0.1℃
External temperature sensor
PT1000(accuracy±0.2℃ )
"Hot" warning
50℃
Overheating temperature protection
580℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
40mm
Data connector
RS232
Timer function
1min-99h59min
Protection class
IP21
Motor rating output
10W
Power
460W
Heating output
410W
Voltage,Frequency
100-120/200-240V，50/60Hz
Dimension [WxDxH]
270x175x108mm
Weight
2.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
